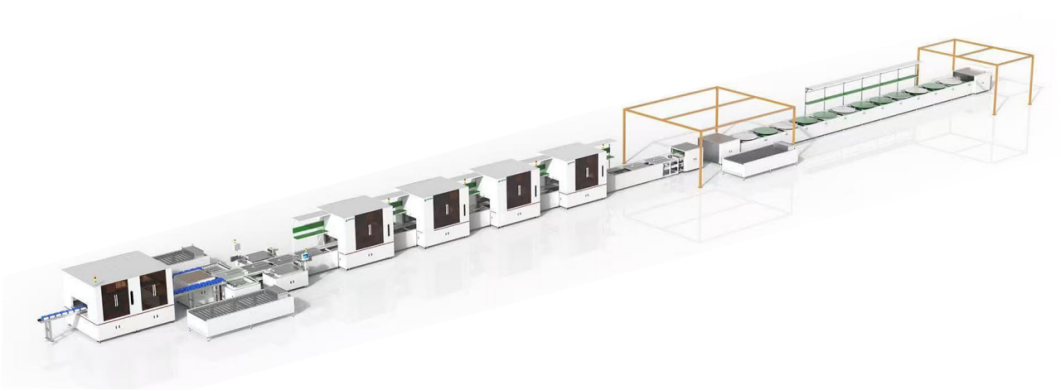

ESS EV Prismatic Lithium Battery Module PACK Production Assembly Line

This customized production line is suitable for commercial ess & residential ess PACK;Used to complete the assembly, welding, testing, and assembly of air-cooled and liquid cooled PACK modules for prismatic energy storage cells,the production line includes: cells loading / cells code scanning / OCV testing / cells thickness measurement / auxiliary line of casing film paste / manual stacking in casing / automatic extrusion manual seel strip placement / manual scanning and code binding/automatic polarity detection / automatic pole cleaning / manual placement of busbar / laser automatic welding / welded manual inspection and cleaning / automatic total voltage internal resistance testing / gantry crane transfer line / manual PACK assembly line / gantry crane offline work station, etc.

Features

High efficiency-The standard double speed chain module ensures the stability and quality of the product

Flexibility-It is compatible with more products of different requirements

Compatibility-It is compatible with a variety of prismatic lithium batteries and air cooling,liquid cooling process

Compatibility range: Prismatic lithium batteries cells

Gas source pressure: 0.6-0.8Mpa

Production line efficiency: 6-15PPM

Utilization rate: ≥ 99%

Control mode: PLC+computer+MES

Power Supply: AC380V/50HZ   150-300KW

Dimensions: L50m × W5.3m × H2.8m.
