What Are the Main Types of Laser Marking Machines?

When selecting a laser marking machine for industrial use, understanding the different laser marking machine types is essential. Each type uses a specific laser source and marking mechanism, making it suitable for certain materials and applications.

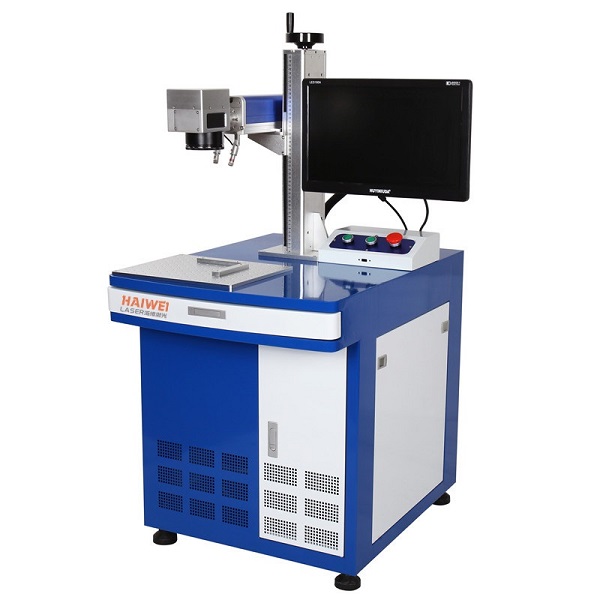

1. Fiber Laser Marking Machines

These are the most common for metal and some plastics. A fiber laser uses a solid-state source (typically 1064 nm wavelength) with excellent beam quality and long service life. They are ideal for deep engraving, serial number marking, and barcode etching on steel, aluminum, and titanium. Low maintenance and high efficiency make them popular in automotive and aerospace sectors.

2. CO₂ Laser Marking Machines

CO₂ lasers operate at a longer wavelength (around 10.6 μm), which is well absorbed by organic materials. They are effective for marking wood, glass, acrylic, paper, and leather. Common in packaging and consumer goods, CO₂ systems are less suitable for metals unless combined with marking coatings.

3. UV (Ultraviolet) Laser Marking Machines

UV lasers use a shorter wavelength (355 nm) and work through a "cold marking" process. This minimizes heat damage, making them ideal for sensitive materials like medical devices, pharmaceutical packaging, and high-gloss plastics. They produce high-contrast marks without surface ablation.

4. Green and Blue Laser Marking Machines

These visible-wavelength lasers (532 nm green, 450 nm blue) are used for marking highly reflective materials or where high precision is needed. Green lasers are effective for marking PCBs, silicon wafers, and certain ceramics. Blue lasers show growing promise in copper and gold marking due to better absorption.

5. MOPA Fiber Lasers

A subtype of fiber lasers, MOPA (Master Oscillator Power Amplifier) systems offer adjustable pulse duration. This allows fine control over color marking on stainless steel or black annealing on titanium—capabilities standard fiber lasers lack.

For buyers, choosing the right laser marking machine depends on material type, required mark durability, and production environment. Evaluating the available laser marking machine types ensures a better match between application needs and technical performance. Haiwei Laser offers all these models, focusing on cost-effectiveness and service support.
